DJJF: Dual Fully Automatic Surface Rewinder

DJJF: Dual Fully Automatic Surface Rewinder

The DJJF model maintains the highest level of automation as the JJF; however, this automation is duplicated on two rewinders simultaneously, thus doubling production!

Video

Specifications



Critical Specifications:

Maximum Web Speed

1-Ply…………………………………2300 fpm (700 mpm)

2-Ply (optional)………………….1200 fpm (365 mpm)

3-Ply (optional)…………………. 1000 fpm (305 mpm)

Maximum Web Width………………………54 inches (1372 mm)

Maximum Unwind Roll Diameter……..50 inches (1270 mm)

Maximum Unwind Roll Weight…………3000 lbs. (1362 kg)

Minimum Rewind Diameter (smaller rewind diameter available)… 1.50 inches (38.1 mm)

Maximum Rewind Diameter…………….12 inches (305 mm)

Minimum Rewind Core O.D………………0.563 inches (14 mm)

Maximum Rewind Core O.D………………1.25 inches (32 mm)

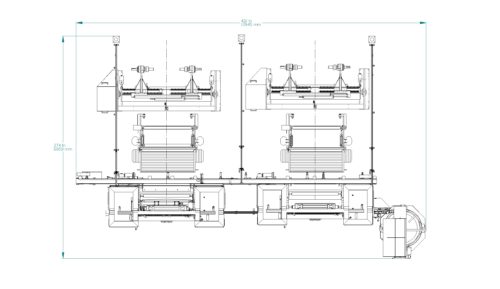

Drawings and Documents

About The DJJF Dual Fully Automatic Surface Rewinder

Simply put, the DJJF is the equivalent of two JJF rewinders combined into one system. As with the JJF, the DJJF requires minimal operator involvement to keep both machines running in a fully-automatic mode. By sharing a few common components between the two rewinders, production becomes twice that of a single JJF unit.  This significantly reduces a converter’s overall investment, labor requirement and production floor space.

The DJJF can be customized or retrofitted with Jennerjahn’s patented coreless technology allowing converters to maximize their initial investment.

Applications

The DJJF  slitter rewinder  is utilized in the highest volume applications where full automation is necessary.  By sharing a few common components between two rewinders, production becomes twice that of a single JJF unit.  This significantly reduces a converter’s overall investment, labor requirement and production floor space.  The JJF can be used for a wide variety of converted products: point of sale, ATM, lottery ticket, airline boarding passes, pressure sensitive labels and many more.

Operator Responsibilities Per Cycle

None!

Automation

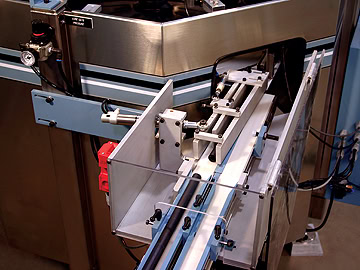

Cores are automatically fed into a sorting unit where they are aligned and staged in the autoloader.  The machine inserts the cores into the rewinding station, cuts the tails, wraps the tails around the cores, tucks the tails, winds the roll to the desired length, transfers the rolls to the seal station, seals the tails of the finished rolls, transfers the rolls to an exit conveyor and conveys the rolls outside of the machine.

Video

Specifications

Maximum Web Speed

1-Ply…………………………………2300 fpm (700 mpm)

2-Ply (optional)………………….1200 fpm (365 mpm)

3-Ply (optional)…………………. 1000 fpm (305 mpm)

Maximum Web Width………………………54 inches (1372 mm)

Maximum Unwind Roll Diameter……..50 inches (1270 mm)

Maximum Unwind Roll Weight…………3000 lbs. (1362 kg)

Minimum Rewind Diameter (smaller rewind diameter available)… 1.50 inches (38.1 mm)

Maximum Rewind Diameter…………….12 inches (305 mm)

Minimum Rewind Core O.D………………0.563 inches (14 mm)

Maximum Rewind Core O.D………………1.25 inches (32 mm)

Drawings and Documents
