The Jennerjahn Case Packer is a component of our turn-key solution for small roll production.  The case packer can pack individual rolls or shrink-wrapped roll packs and can be mated to the end of an RPL or FB550 sleeve wrapper.

Description

Typical Uses:

The Jennerjahn Case Packer is a component of our turn-key solution for small roll production.  The case packer can pack individual rolls or shrink-wrapped roll packs and can be mated to the end of an RPL or FB550 sleeve wrapper.

A horizontal magazine stores box blanks and automatically feeds them into the case erector and taping head.   Open, erected boxes are staged in the roll loading area while a layer of product is gathered with a robust servo actuator. A second servo actuator controls the pick and placement of the layer into the box utilizing a special Area Vacuum Gripper.   The vacuum pad is slightly smaller than the outside layer dimensions allowing a close fit between the box and the product.  Different layer forming patterns are quickly accommodated by the quick-change gripper mechanism supplied with every machine.

Once the proper number of layers has been loaded, the box is transferred to the box closing system, where it is sealed with tape.

An optional print-and-apply label system can be used to label each box before it exits the machine on the included discharge conveyor.



Video 1

Video 2

Specifications

Standard Specifications (Custom Sizes are Available):

Minimum Case Dimensions………… 7.3” (185mm) L x 7.3” (185mm) W x 4.5” (114mm) H

Maximum Case Dimensions………… 17” (432mm) L x 17” (432mm) W x 14” (356mm) H

Typical Production Rates

(When packing 50 rolls per case)

………………………………………………….. 125 rolls per minute for 3”(76mm) finished diameter rolls

……………………………………………………160 rolls per minute for 1.38” (35mm) finished diameter rolls

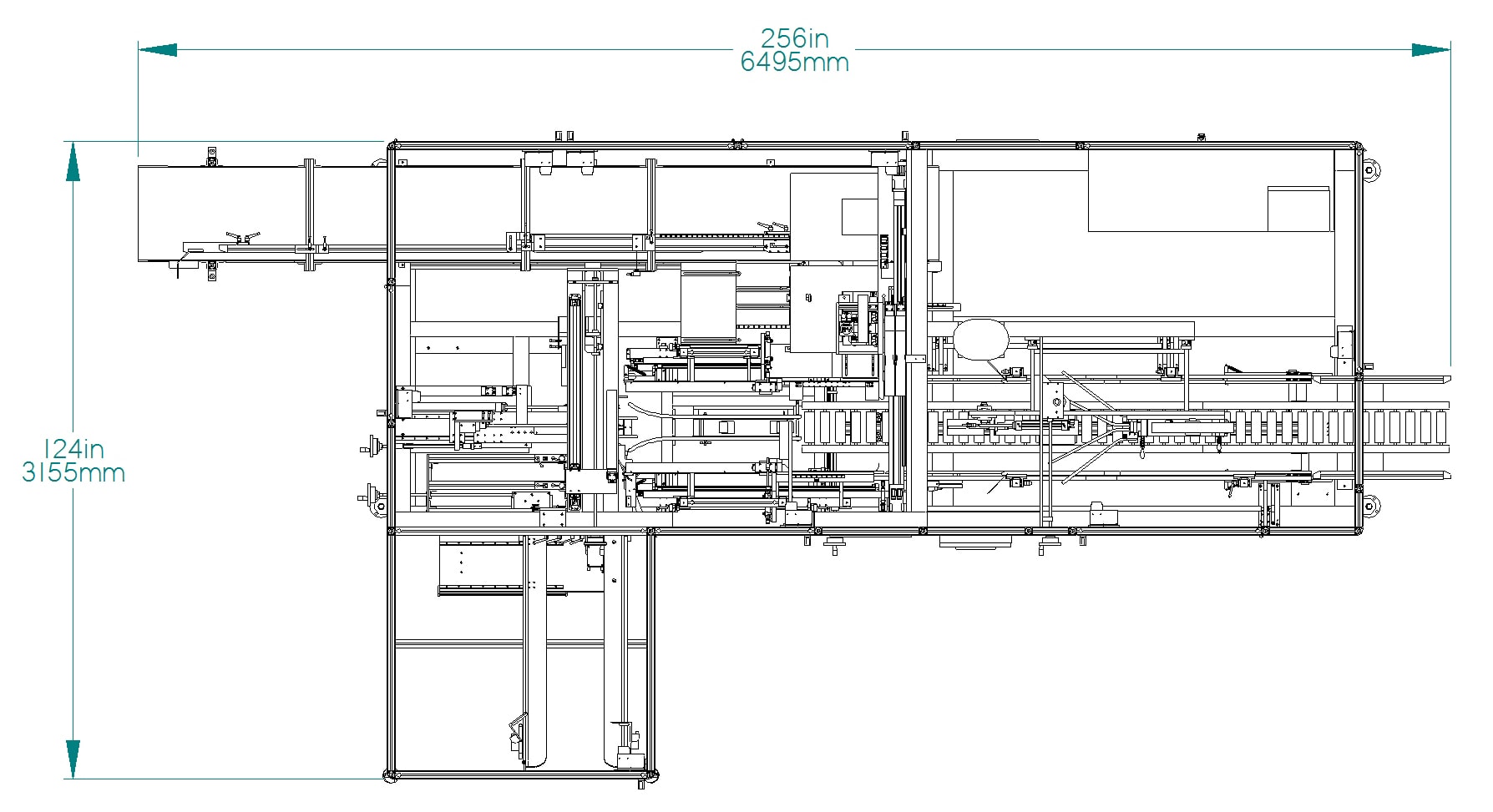

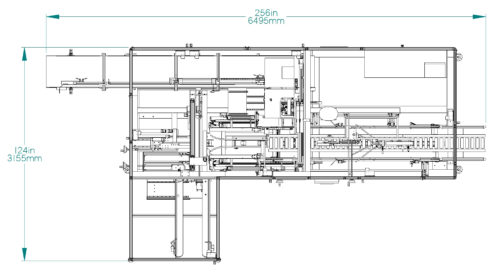

Drawings and Documents

Description

The Jennerjahn JCP Case Packer is the preferred solution for POS roll packaging.  The JCP features a state-of-the-art area vacuum gripper system with servo actuation to control the pick and placement of the roll layer into the box.  When running 3” or (76mm) diameter rolls, the JCP can pack 120 rolls per minute!  When running 1.38” or (35mm) diameter rolls, the JCP can pack 160 rolls per minute!  Watch the video below to learn more.  With the addition of the Jennerjahn Case Packer, customers have the ability to automate their entire converting process from slitting to packaging.  This turn key solution will save time, resources, space on the production floor and most of all, money!

Typical Uses:

The Jennerjahn Case Packer is a component of our turn-key solution for small roll production.  The case packer can pack individual rolls or shrink-wrapped roll packs and can be mated to the end of an RPL or FB550 sleeve wrapper.

A horizontal magazine stores box blanks and automatically feeds them into the case erector and taping head.   Open, erected boxes are staged in the roll loading area while a layer of product is gathered with a robust servo actuator. A second servo actuator controls the pick and placement of the layer into the box utilizing a special Area Vacuum Gripper.   The vacuum pad is slightly smaller than the outside layer dimensions allowing a close fit between the box and the product.  Different layer forming patterns are quickly accommodated by the quick-change gripper mechanism supplied with every machine.

Once the proper number of layers has been loaded, the box is transferred to the box closing system, where it is sealed with tape.

An optional print-and-apply label system can be used to label each box before it exits the machine on the included discharge conveyor.

Video 1

Video 2

Specifications

Standard Specifications (Custom Sizes are Available):

Minimum Case Dimensions………… 7.3” (185mm) L x 7.3” (185mm) W x 4.5” (114mm) H

Maximum Case Dimensions………… 17” (432mm) L x 17” (432mm) W x 14” (356mm) H

Typical Production Rates

(When packing 50 rolls per case)

………………………………………………….. 125 rolls per minute for 3”(76mm) finished diameter rolls

……………………………………………………160 rolls per minute for 1.38” (35mm) finished diameter rolls

Drawings and Documents
