The JJS is typically utilized in high volume production environments where production rate variability due to traditional operator interaction must be avoided.   The rewinder can be used for a wide variety of roll products: point of sale, ATM, lottery ticket, airline boarding passes, counter, butcher, newsprint, roof underlayment, home and auto masking, doctor exam, pressure sensitive labels and many more.

Description

Typical Uses:   The JJS is typically utilized in high volume production environments where production rate variability due to traditional operator interaction must be avoided.   The rewinder can be used for a wide variety of roll products: point of sale, ATM, lottery ticket, airline boarding passes, counter, butcher, newsprint, roof underlayment, home and auto masking, doctor exam, pressure sensitive labels and many more.

Operator Responsibilities Each  Cycle:   The operator is responsible for loading cores onto a rewind mandrel and placing the mandrel into the magazine.  The machine does the rest.

Automation:   As long as mandrels are staged in the autoloader, the machine will insert the cored mandrel in the rewinding station, cut the tails, wrap the tails around the cores, tuck the tails, wind the roll to the desired length, transfer the rolls to the seal station, seal the tails of the finished rolls, remove the mandrel cap from the mandrel and transfer the finished rolls to a packing table.  The machine—not the operator—dictates the cycle time.

Standard Features:   (In addition to the previously identified JJM features)

  1. Automatic mandrel insertion system.
  2. Automatic tail cutter.
  3. Automatic gluing system (optional tabbing unit is available).
  4. Automatic roll removal system with conveyor to transfer rolls to the integrated packing table.
  5. Automatic mandrel cap removal system.
  6. Upgradable to 2- and 3-ply configurations.
  7. Upgradable to a JJF.

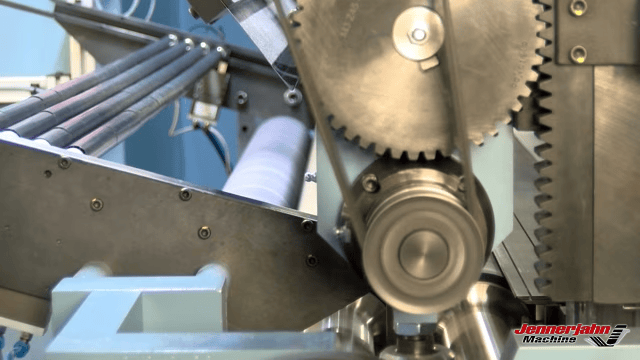

Video

Specifications



Critical Specifications:

Maximum Web Speed

1-Ply……………………………………… 2300 fpm (700 mpm)

2-Ply (optional)……………………… 1200 fpm (365 mpm)

3-Ply (optional)………………………. 1000 fpm (305 mpm)

Maximum Web Width………………………….. 54 inches (1372 mm)

Maximum Unwind Roll Diameter…………. 50 inches (1270 mm)

Maximum Unwind Roll Weight…………….. 3000 lbs. (1362 kg)

Minimum Rewind Diameter (option for 1.18” (30mm) is available)…………………… 1.50 inches (38.1 mm)

Maximum Rewind Diameter…………………..12 inches (305 mm)

Minimum Rewind Core O.D……………………0.563 inches (14 mm)

Maximum Rewind Core O.D………………….. 3.50 inches (88.9 mm)

Drawings and Documents

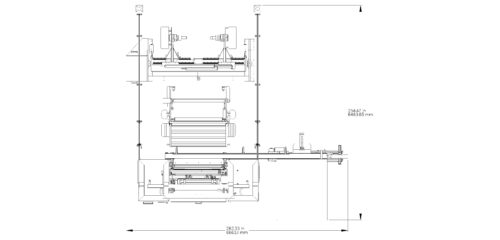

Optional Dual Web System

By adding an additional unwind stand and the dual web package, the operator can load two narrow width master rolls into the machine and process both rolls simultaneously.  This allows the operator to maximize slitting efficiency when processing long runs of narrow width master rolls.

Description

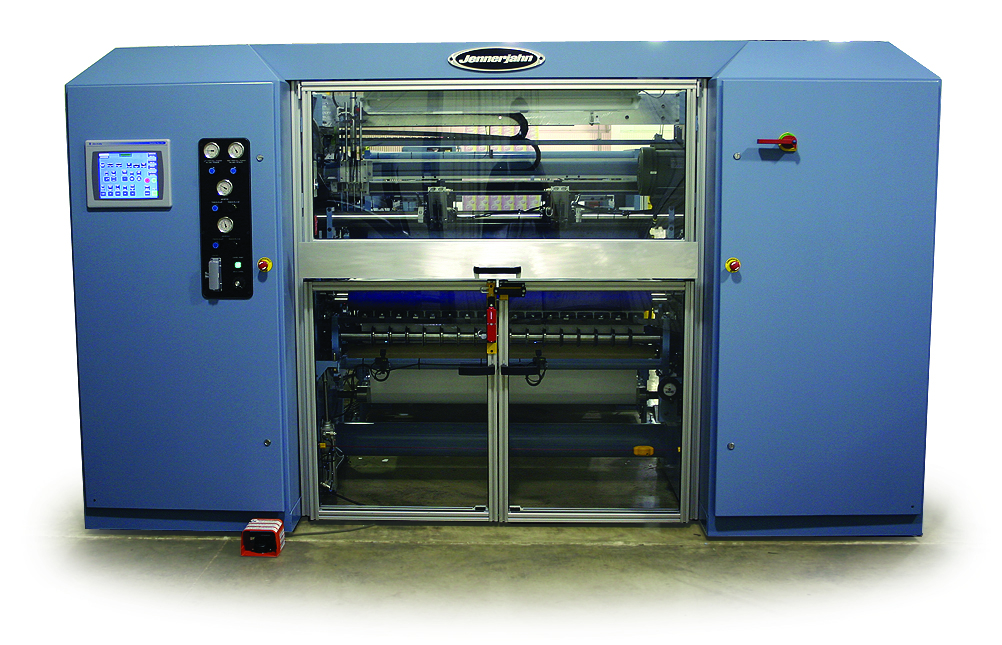

The JJS model is the second level of automation featured on Jennerjahn small roll surface rewinders.  Automation levels include; Semi-Manual, Semi-Auto, and Fully Automatic

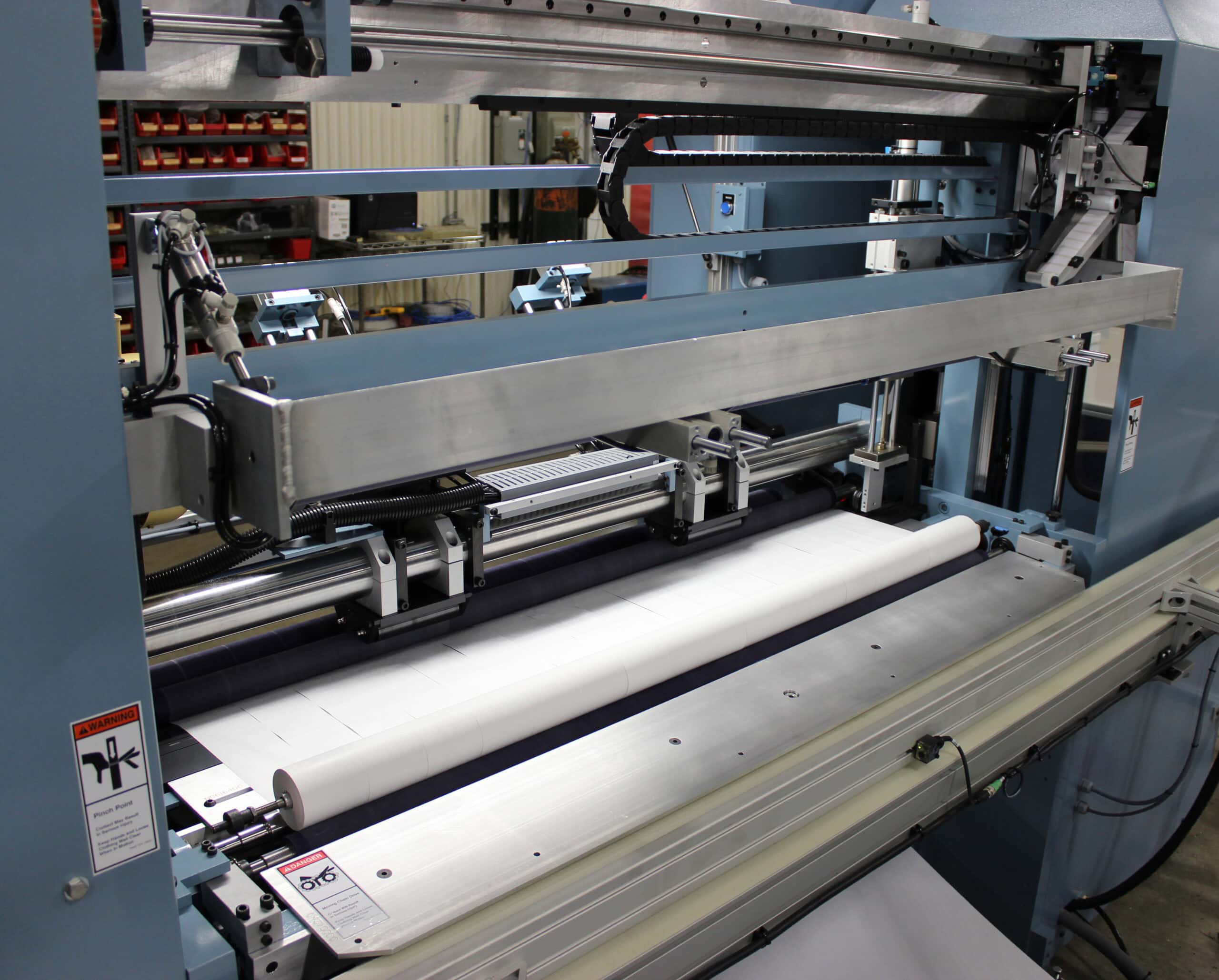

To maintain continuous operation of the JJS, the operator is responsible for loading cores onto a mandrel and placing it into a magazine in front of the winding station.  Up to 6 sets of mandrels can be staged in the magazine.  Tucked roll starts, tail cuts, tail sealing with glue or adhesive tabs, finished roll kick-out, and mandrel cap removal, are all done automatically.

The separate unwind stand and rewinder frame offer greater flexibility to add optional features such as adhesive tab tail sealing, dual web or Jennerjahn’s patented coreless technology, and the ability to be reconfigured to a fully automatic JJF model.

All Jennerjahn small roll surface rewinders feature two bedrollers and a top rider roller that applies programmable torque and regulated down pressure to accurately control tension and roll hardness throughout the winding cycle.

Typical Uses:   The JJS is typically utilized in high volume production environments where production rate variability due to traditional operator interaction must be avoided.   The rewinder can be used for a wide variety of roll products: point of sale, ATM, lottery ticket, airline boarding passes, counter, butcher, newsprint, roof underlayment, home and auto masking, doctor exam, pressure sensitive labels and many more.

Operator Responsibilities Each  Cycle:   The operator is responsible for loading cores onto a rewind mandrel and placing the mandrel into the magazine.  The machine does the rest.

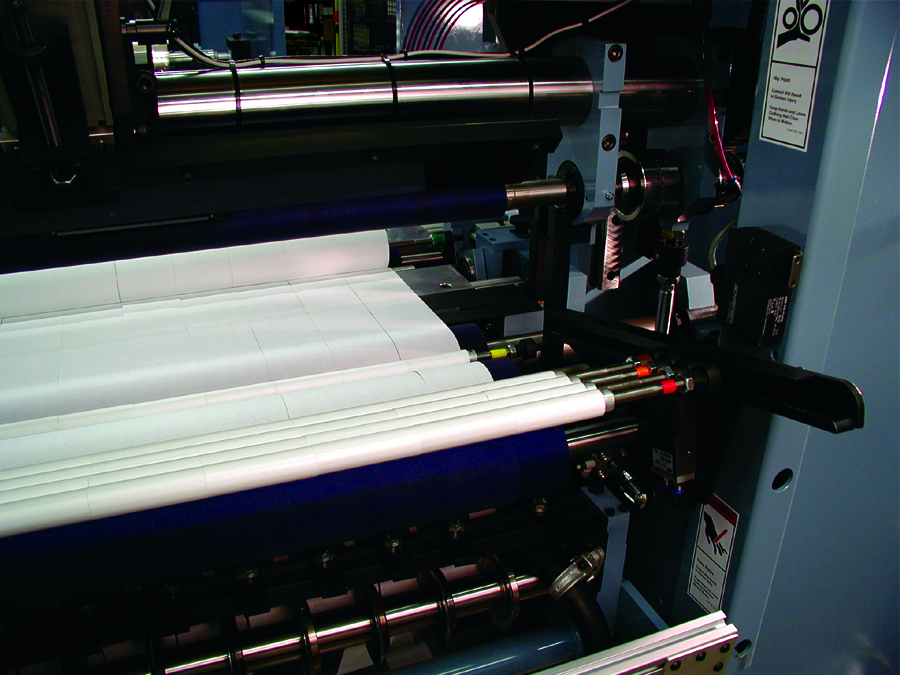

Automation:   As long as mandrels are staged in the autoloader, the machine will insert the cored mandrel in the rewinding station, cut the tails, wrap the tails around the cores, tuck the tails, wind the roll to the desired length, transfer the rolls to the seal station, seal the tails of the finished rolls, remove the mandrel cap from the mandrel and transfer the finished rolls to a packing table.  The machine—not the operator—dictates the cycle time.

Standard Features:   (In addition to the previously identified JJM features)

  1. Automatic mandrel insertion system.
  2. Automatic tail cutter.
  3. Automatic gluing system (optional tabbing unit is available).
  4. Automatic roll removal system with conveyor to transfer rolls to the integrated packing table.
  5. Automatic mandrel cap removal system.
  6. Upgradable to 2- and 3-ply configurations.
  7. Upgradable to a JJF.

Video

Specifications

Critical Specifications:

Maximum Web Speed

1-Ply……………………………………… 2300 fpm (700 mpm)

2-Ply (optional)……………………… 1200 fpm (365 mpm)

3-Ply (optional)………………………. 1000 fpm (305 mpm)

Maximum Web Width………………………….. 54 inches (1372 mm)

Maximum Unwind Roll Diameter…………. 50 inches (1270 mm)

Maximum Unwind Roll Weight…………….. 3000 lbs. (1362 kg)

Minimum Rewind Diameter (option for 1.18” (30mm) is available)…………………… 1.50 inches (38.1 mm)

Maximum Rewind Diameter…………………..12 inches (305 mm)

Minimum Rewind Core O.D……………………0.563 inches (14 mm)

Maximum Rewind Core O.D………………….. 3.50 inches (88.9 mm)

Drawings and Documents

Optional Dual Web System

By adding an additional unwind stand and the dual web package, the operator can load two narrow width master rolls into the machine and process both rolls simultaneously.  This allows the operator to maximize slitting efficiency when processing long runs of narrow width master rolls.
