2 Shaft Turret Slitter – JTS-2

2 Shaft Turret Slitter – JTS-2

The JTS-2 is a fully automatic turret winder used to convert a variety of surface sensitive products.  The machine is ideal for converters who seek full automation, but who have concerns about web surface scratching or require minimum wound-in tension.

Description

Typical Uses:   The JTS-2 is a fully automatic turret winder used to convert a variety of surface sensitive products.  The machine is ideal for converters who seek full automation, but who have concerns about web surface scratching or require minimum wound-in tension.  The machine’s sophisticated tension control system provides superior lane control, allowing for multiple slit production.  Typical rewind shafts range in size from 1.5” (38mm) to 3” (76mm) in diameter with custom diameters available.  This machine converts window tint films, coated photo papers, pressure sensitive cast vinyls, coated canvas and much more.

Operator Responsibilities per Cycle:   The machine is fully automatic, allowing the operator to assist with roll packaging.

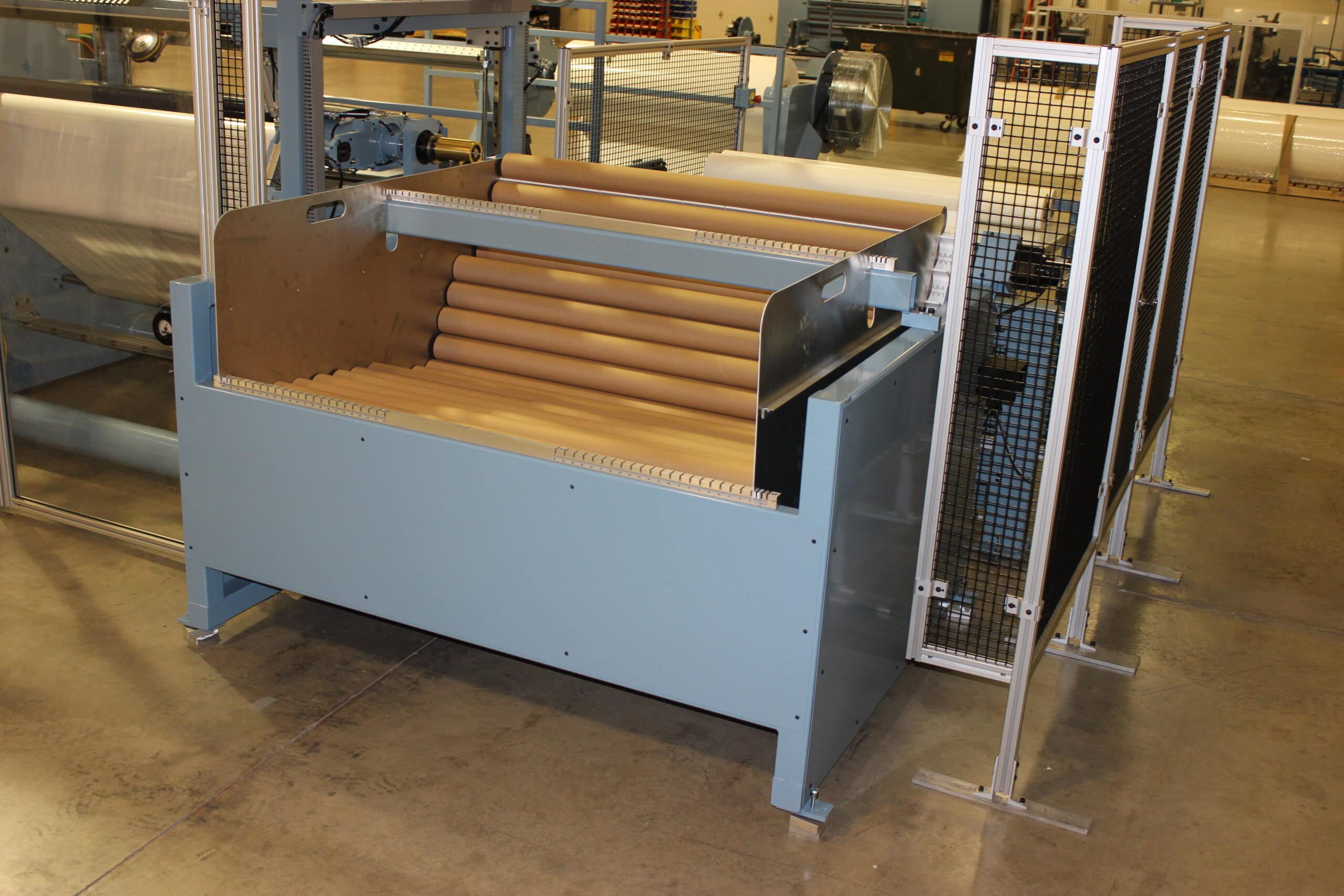

 Automation:   Cores are staged in a core hopper and transferred to an autoloader station where they are loaded onto rewind shafts.   The machine automatically cuts the tails, wraps the tails around the cores, tucks the tails, winds the roll to the desired length, seals the tails of the finished rolls and strips the shaft of finished rolls.

Video 1 (JTS-65/2)

Video 2 (JTS-2)

Specifications

Production / Cycle Time Estimates:

Cycle times vary depending on material type, web tension and number of slits required.

Critical Specifications:

Maximum Web Speed (1-Ply)……………………… 600 fpm (180 mpm)

Maximum Web Width (customer specified)…. 40 inches (1000 mm) to 73 inches (1854 mm)

Maximum Unwind Roll Diameter………………… 40 inches (1524 mm)

Maximum Unwind Roll Weight……………………. 2000 lbs. (1132 kg)

Minimum Rewind Diameter …………………………3.25 inches (82 mm)

Maximum Rewind Diameter………………………….6 inches (150 mm)

Minimum Rewind Shaft O.D………………………….1.5 inches (38 mm)

Maximum Rewind Core O.D…………………………. 3.0 inches (76 mm)

Drawings and Documents

Optional Features

  1. Driven unwind stands for very low tension applications.
  2. Banding systems for roll sealing. (This allows no end-of-roll waste from adhesive residue, which traditional tail sealing labels can leave behind.)
  3. Core ID marking system.
  4. Foldless start system.
  5. Tape-to-core roll start system.

Description

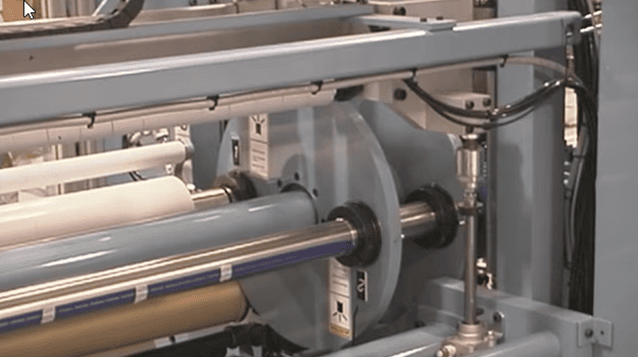

The JTS 2 is a two-station turret center winder.  While cores are being loaded onto the shaft in station 1, adhesive tape is applied to the cores.  As the turret rotates the shaft from station 1 to station 2, the tails are cut.  A nip roller makes contact with the leading edge of the web momentarily at the beginning of the cycle to assure a quality roll start. The finished roll’s rotation is driven by the center of the rewind shaft to minimize contact with the surface of the roll for web sensitive products.  As the turret rotates the finished rolls back to station 1, the rolls are sealed with an adhesive tab and stripped from the shaft.  A new set of cores are loaded onto the shaft in station 1 while a new set of finished rolls are being wound in station 2.

The most common master roll widths for the JTS range from 40 to 73 inches.  Typical rewind shafts range from 1.5 to 3 inches in diameter with finished roll diameters up to 6 inches.

Driven unwind stands and load cells can be added for very low-tension applications.  Banding systems can also be added to eliminate end-of-roll waste caused by adhesive residue or tearing of the product when the roll is opened by the end user.

Also available as an option, robotic core I.D. and R.F.I.D. labeling systems can be integrated.

Jennerjahn’s JTS 4 shaft turret center winder is another center winder option for high volume, fully automatic production.
