Coreless Surface Slitter Rewinders
Conventional point-of-sale (POS) rolls, thermal paper rolls, and other rolled products contain a cardboard or plastic core. While this facilitates easier winding of the product, it leaves an inner core material that requires disposal when no paper or other product remains on the roll. These disposable cores add up in our landfills, contributing to needless waste.
Coreless rolls offer a more cost-effective and environmentally sustainable solution, and business owners who rely on POS rolls are increasingly taking advantage of this efficient new technology. Some of the benefits of using coreless rolls include:
- Easier and faster replacement
- Elimination of unnecessary waste
- Lowering costs and simplifying production
- Saving space during transportation
- Maximizing the amount of product on each roll
Producing coreless thermal rolls requires a coreless winding machine. Jennerjahn’s coreless winding machines make this process simple, with various configurations to meet the demands of various consumer and manufacturer applications.

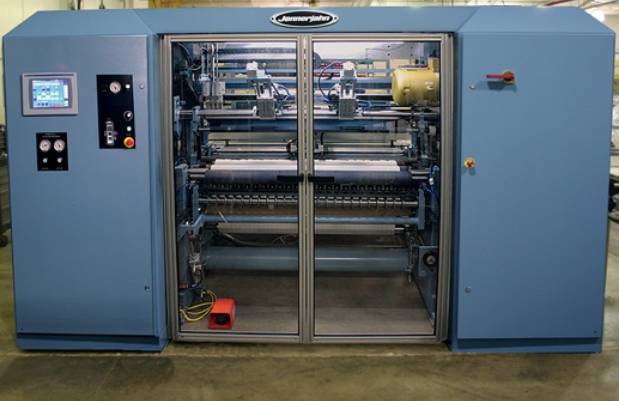

CJJF: Coreless Fully Automatic Surface Rewinder
Equipped with Jennerjahn Machine’s patented technology, the CJJF Coreless Fully Automatic Surface Rewinder offers the highest degree of automation.
Core-related quality issues can be easily eliminated by using precision ground, high-quality shafts. This coreless rewinder includes an automated shaft handler that transfers rolls from the stripping station to the winding station. The innovative technology ensures the product remains secure throughout the winding process.
Once complete, the tails are cut automatically and fastened to the roll using an adhesive tab sealing system or standard glue system. The finished rolls are removed from the shaft and moved to the exit conveyor. The CJJF can keep running in automatic mode while the handler lifts the shaft and positions it for the next cycle.
Benefits
Advantages of using coreless rolls include lowering production costs, increasing warehouse space, and promoting environmental initiatives. The features and benefits of the CJJF model add value to the product and provide a more efficient manufacturing process. Highlighted features include:
- Advanced solid shafts that remove quality issues commonly caused by cores
- Automatic shaft handlers transfer and position shafts from stripping to winding stations
- Automatically moves from one cycle to the next
- Eliminates consumer waste
The benefits to the POS roll end product include:
- Tightly wound rolls every time
- End products can withstand the rigors of shipping
- More than two times the crush resistance of conventional cored POS rolls
- Coreless rolls will not experience deformation such as egg or oval shapes
Customers with an existing JJF, JJS, or DJJF machine manufactured in 2000 or later can retrofit it with this patented coreless rewind technology, in addition to obtaining the proper license from Jennerjahn Machine.

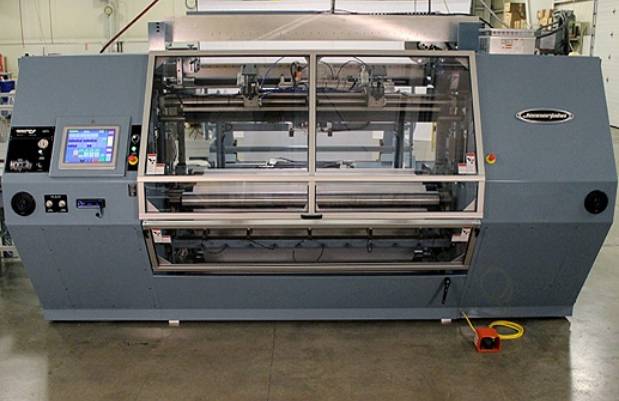

CJLS: Coreless Solid Shaft Large Slitter Rewinder for 73” Products
The CJLS Coreless Solid Shaft Large Slitter Rewinder is an ideal solution for companies converting roll products such as:
- Kraft paper
- Butcher paper
- Freezer wrap
- Red rosin
The surface slitter rewinder utilizes Jennerjahn Machine’s exclusive coreless rewind technology, maintaining the same level of automation as the JLS model. The rolls get tightly wound around precision ground shafts, removing the need for a core. Winding the roll with the right level of tightness ensures it resists deformation and crushing. Many manufacturers are unsuccessful with coreless winding because of this critical issue.
Click to Expand
The CJLS has full automation capabilities using three 1.25” outer diameter (OD) rewind shafts. A chucking method keeps the shafts contained during the winding process. While the roll gets wound onto a shaft, a second shaft transfers to the sealing station to cut the tails. Rolls are stripped and sent to the exit conveyor. The handler retrieves the third shaft for staging behind the rewind station.
When a completed set of rolls go from the winding station to the sealing station, the handler places an empty shaft onto the winding station, and the cycle repeats itself.
Customers who currently have a JLS model (2001 or later) can use this coreless rewind technology by retrofitting their machine. The finished roll rewind diameter is limited to 10 inches on retrofits and new machines.
Coreless Large Slitter for 73” Products – CJLS 73 Pneumatic Shaft
The CJLS Pneumatic Shaft Large Slitter Rewinder is an optimal solution for coreless products with the following parameters:
- Final roll diameter of 3 – 12 in.
- Roll void inner diameter between 1.5 – 3 in.
The equipment can produce floor underlayment (red rosin), gummed paper tape (water-activated packaging tape), and colored paper rolls commonly used for photography studio backdrops and educational settings.
The CJLS model, while fully automated, allows manual operators to help with roll packaging. The equipment uses pneumatically expandable rewind shafts to wind coreless rolls with a higher coefficient of friction and larger voids. The autoloader uses air to expand the shaft and then sends it to the winding station.
Similar to the standard JLS machine, the shaft of this machine is contained during the winding process via a chucking method. The rolls get wound onto the first shaft while the second shaft moves to the sealing station to cut and secure tails. Rolls then move on to the exit conveyor.
A shaft gripper system removes the shaft from the finished rolls and returns it to the autoloader. The coreless rolls are transferred to a packing table.
Applications and Features
The CJLS pneumatic shaft surface slitter rewinder is ideal for an array of converted products, including but not limited to:
- Counter rolls
- Fiber reinforced box tape
- Floor underlayment
- Red rosin
- Roofing materials
In addition to having similar features to the JJM and JJS models, the standard features of the CJLS include:
- Specialized coreless rewind shafts with consistent concentricity
- Automatic shaft expansion and retraction
- Automatically removes finished rolls from shafts
Coreless Surface Slitter Rewinders From Jennerjahn Machine
Jennerjahn Machine is a second-generation family-owned business that started in 1979. For the past 40+ years, Jennerjahn Machine has expanded into an internationally renowned company with installations now operating in 24 countries. We now employ more than 50 team members, and we are a global leader in the converting industry.
Our experienced staff includes electrical and mechanical engineers, machinists, assembly and maintenance technicians, electricians, and an administrative and support staff. We continuously offer cost-effective, efficient solutions to address a variety of complex and unique applications.
Jennerjahn Machine provides fully automatic slitting, packaging, custom machinery, and rewinding services. We build some of the world’s most advanced converting machinery and manufacture standard and custom slitting and rewinding equipment. Our coreless winding machines offer added product value by reducing transportation costs, eliminating waste, and increasing the amount of product on each roll.
Our skilled team can provide the ideal solution to address your converting needs. Request a free quote, or contact us to learn more about our coreless surface slitter rewinders.
